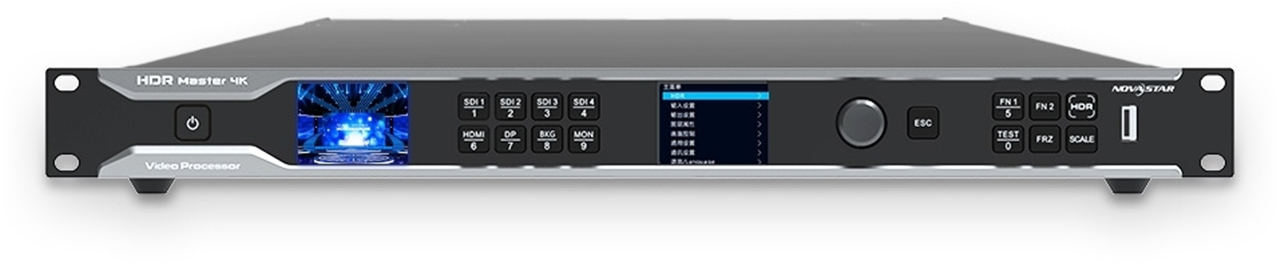

How does an LED video processor work?

The working principle of the LED video processor, also known as the picture processor, image converter, video controller, and independent video source video format converter, is a key device witnessing the birth, growth, and maturity of the LED full-color display screen. The quality of the LED video processor directly affects the display effect of the LED display. The use of the LED video processor in conjunction with the display greatly facilitates the widespread application by end-users, enhancing the depth of usage of LED displays.

The full-color LED multi-picture video image processor, launched by national high-tech enterprises, is a high-performance image processing and control device designed for full-color LEDs. This device integrates years of experience in video image processing, high-definition signal processing, and display. It uses patented technology in its hardware design, tailored to the special requirements of full-color LED screens, capable of simultaneously accepting and processing various video and graphic signals, and displaying them on full-color LED screens.

So, how does an LED video processor work? Let's introduce it.

1. Resolution Specification Conversion: Generally, the resolution of the signal source (such as Blu-ray DVD, computers, HD play boxes, etc.) has a fixed standard (refer to VESA, ITU, SMPTE standards), while the modular assembly display of LED screens allows for almost any resolution value. The video processor converts various signal resolutions to the actual physical display resolution of the LED screen.

2. Color Space Conversion: The color gamut of LED screens is broad, whereas most image signals have a smaller color space (such as NTSC). To achieve excellent image display effects on LED screens, color space conversion is necessary.

3. Bit Depth Enhancement: The gray level of current LED screens has been enhanced to 16 bits or 17 bits, while most input signal sources are only 8 bits. Therefore, with the advent of the HD display era, the application of 10-bit or even 12-bit processing technology in video processors has become a trend.

4. Scaling: In the process of resolution specification conversion, image scaling is required, whether the resolution is increased or decreased, to display the complete image on the screen.

5. Image Processing and Enhancement Technology: Digital image processing technology has developed from the 1920s to the present, producing a large number of patented technologies. For example, the series of patented technologies by Faroudja Laboratories, which won the Emmy Award, such as DCDi, ACC2, ACM3D, have undoubtedly greatly improved the visual effects of images.

The working principle of the LED video processor encompasses a sophisticated blend of technologies and innovations that have been developed over the years to address the unique demands of LED display technology. From converting signal resolutions to match the unique modular dimensions of LED screens to enhancing color spaces and bit depth for superior image quality, these processors are central to the performance and visual excellence of LED displays.
