Choosing the Right Module Mask Design for Transparent LED Displays

When it comes to transparent LED displays, module protection isn’t just about safeguarding the LEDs—it directly affects visual performance, transparency, flatness, and long-term durability. Selecting the right mask design is essential for ensuring your screen performs optimally in its specific environment.

At Litop, we offer three carefully engineered LED module protection solutions tailored to different applications.

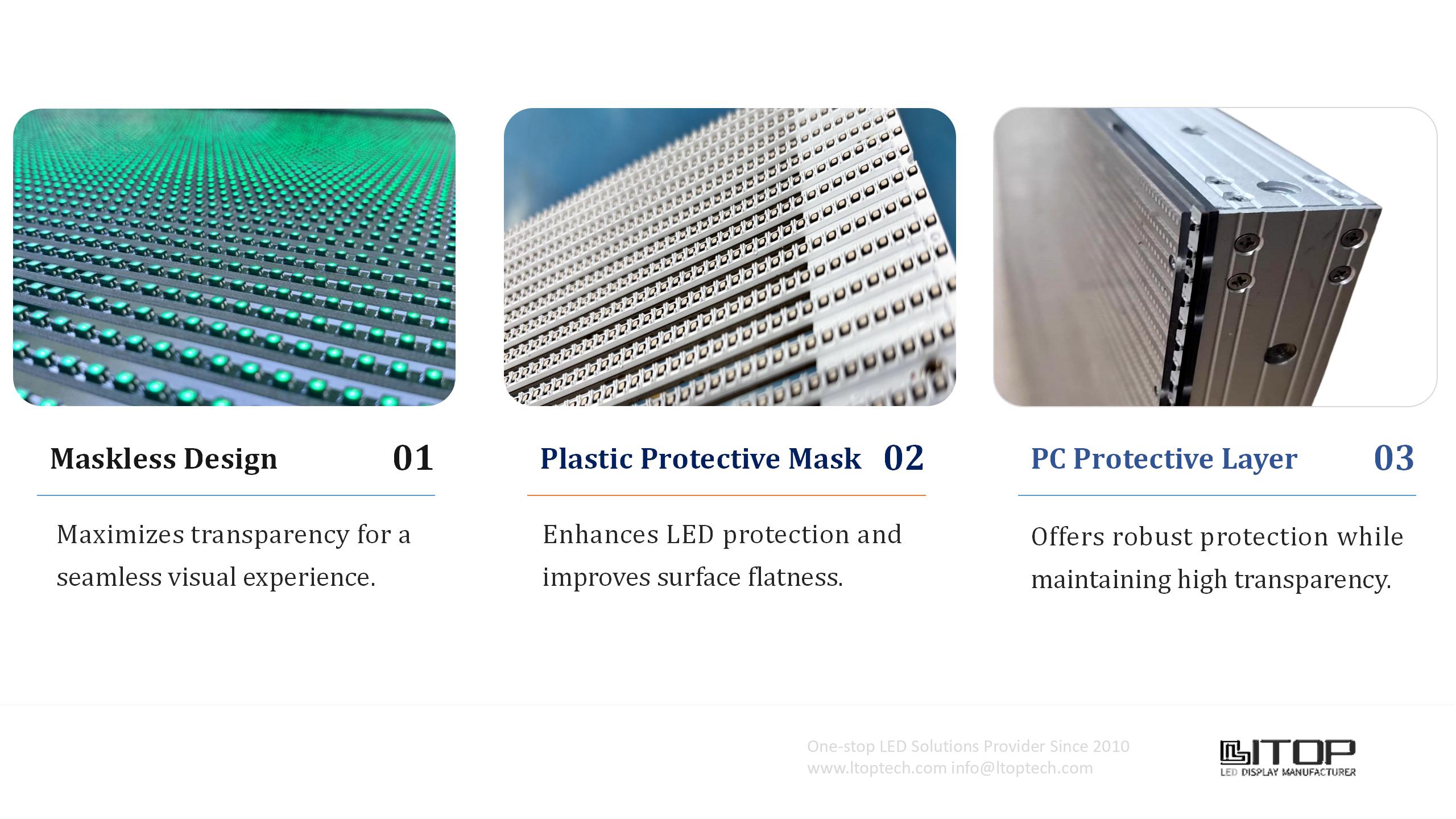

1. Maskless Design – For Maximum Transparency

If you're looking for the clearest visual effect, the maskless design is the top choice. By removing any covering over the LED module, this approach offers over 90% transparency, making it ideal for:

* High-end indoor retail

* Showroom environments

* Projects where aesthetics take priority

However, because the LED beads are fully exposed, this option requires very careful handling during both installation and maintenance. It’s best suited for clean, controlled spaces with minimal physical contact.

2. PC (Polycarbonate) Protective Cover – Durable & Versatile

Polycarbonate (PC) is known for its high impact resistance and excellent surface flatness. At Litop, our PC covers are available in two configurations:

* Rear-Mounted PC Protection: Perfect for fixed installations where you want to maintain visual clarity while protecting the back of the screen from dust and bumps.

* Front-Mounted PC Protection: Best for interactive zones or mobile displays where users or passersby may come into close contact with the screen, such as exhibitions or show floors.

This solution strikes a great balance between durability and transparency, making it a popular choice for transparent screen for retail windows and other commercial environments.

3. Injection-Molded Plastic Mask – Tough & Heat-Resistant

For rental LED displays or screens placed in public spaces with high foot traffic, injection-molded plastic masks provide the ultimate resilience. These masks are:

* Heat-resistant

* Shockproof

* Built to withstand frequent transport and handling

They’re ideal for stage events, trade shows, and temporary outdoor installations, where the display must endure repeated setup and teardown without performance loss.

Our Recommendation

For projects where a balance between visual clarity and structural protection is important, rear-mounted PC protective covers are a solid option.

They offer a clean front display while providing additional shielding for sensitive components at the back.

However, for most rental or public-facing applications, our standard injection-molded plastic mask provides excellent durability and heat resistance with proven field performance.

Remember: the right transparent LED mask design should match your environment’s risk level, installation method, and maintenance expectations. Choosing wisely not only enhances display performance but also reduces long-term repair and replacement costs.

Looking for the best transparent LED display solution for your project? Contact Litop LED today—our team will help you find the perfect combination of brightness, transparency, and protection for your specific needs.
